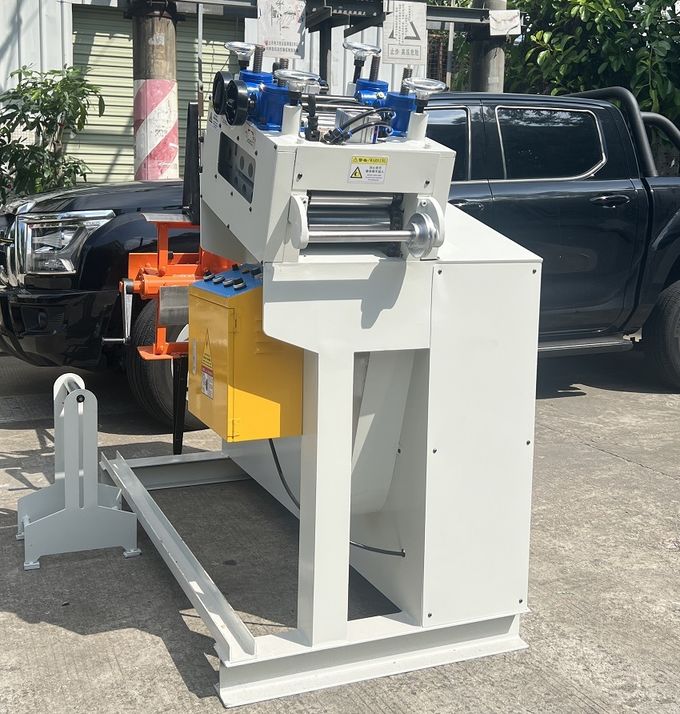

3 in 1 servo decoiler straightener feeder openable type high tension thick plate 0.6‑6.0mm metal sheet stamping

Brand Name : QIAOSEN

Packaging Details : Standard

Feeding Speed : 16-24

Place of Origin : China，guangdong

Power(w) : 2HP

Weight (kg) : 2000

Max Material Weight : 10000kg

Video Outgoing-inspection : Provided

MOQ : 1

Warranty : 1 Year

Coil Outside Diameter : 1400mm For Uncoiler

Width Of Material : 600-1600mm

Thickness Of Material : 0.6-6.0

Delivery Time : 30

Certification : CE / ISO14001

Price : $37,000/case

Supply Ability : 30 Sets/Month

Dimension(l*w*h) : 5150*2258*3398mm

Payment Terms : T/T

Voltage : Customized

Contact Now

Automatic steel plate metal sheet decoiler with material straightening, leveling and feeding capabilities.

3 in 1 servo decoiler straightener feeder openable type high tension thick plate 0.6‑6.0mm metal sheet stamping
Product Specifications
Model NLF4-600 NLF4-800 NLF4-1000 NLF4-1300
Coil width (mm) 70-600 70-800 70-1000 70-1300
Coil thickness (mm) 0.8-9.0
Max coil weight (kg) 5000 5000 7000 10000
Coil I.D (mm) 508
Coil O.D (mm) 1400
Max speed (mm) 22
Feeding accuracy (mm) ± 0.15
Correction roll (mm) Upper 5/lower 4
Feeding roll (set) 1
Back pressure roll (set) provided
Feeding line height (mm) 1200 ±100
Power supply AC220V 50HZ/AC380V 50HZ
Uncoiler expansion method (mm) hydraulic
Air pressure (kg/cm²) 5
Servo motor (kw) AC22
Uncoiler motor (kw) 2.2 2.2 3.7 7.5
Key Features
  • Uses 9 leveling hoops for enhanced material straightening precision
  • Electronic straightening adjustment system for easy setup and faster operation
